Opticheck® Surface (Paper): A Paper Inspection System Ensuring Flawless Paper Quality

Description

Wide Inspection Coverage	Up to 3000 mm inspection width (expandable with additional cameras for wider coverage).
Superior Inspection Resolution	Standard resolution of 0.25 mm for meticulous defect detection (higher resolution available based on customer requirements).
Impressive Inspection Speed	Capable of inspecting at speeds up to 400 m/min (higher speeds achievable with hardware enhancements).
Multiple High-Resolution Line Scan Cameras	Equipped with multiple line scan cameras to ensure comprehensive and accurate defect identification.
Hi-Bright LED Line Light	Long-life high-brightness LED line lights provide consistent illumination and extended operating hours.

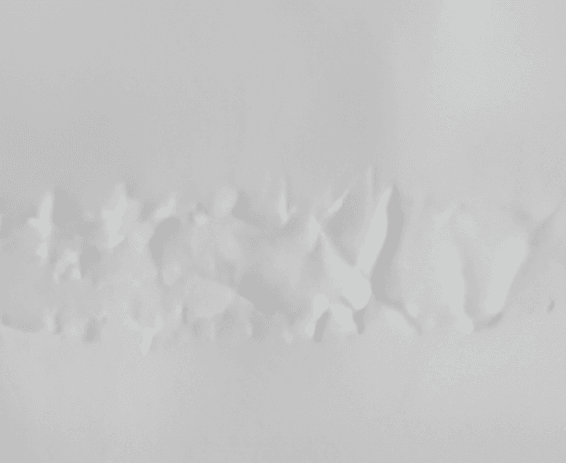

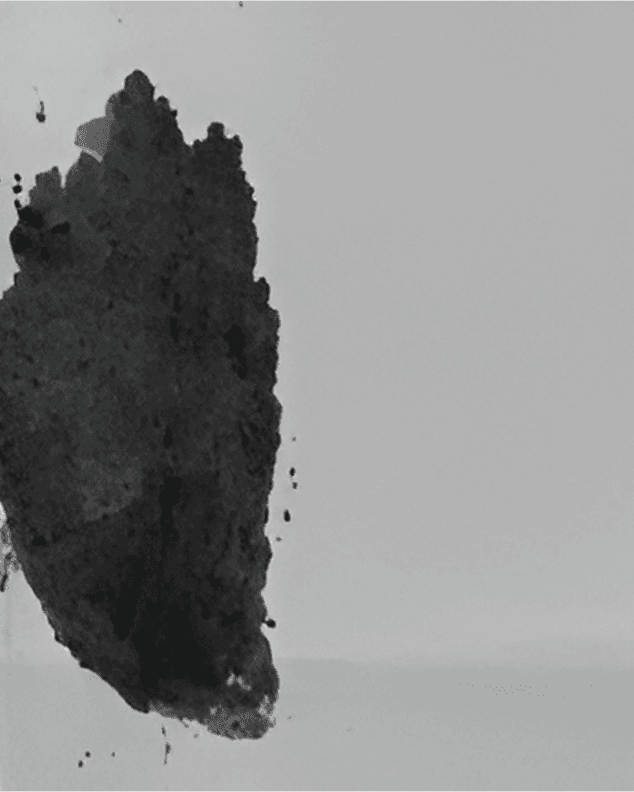

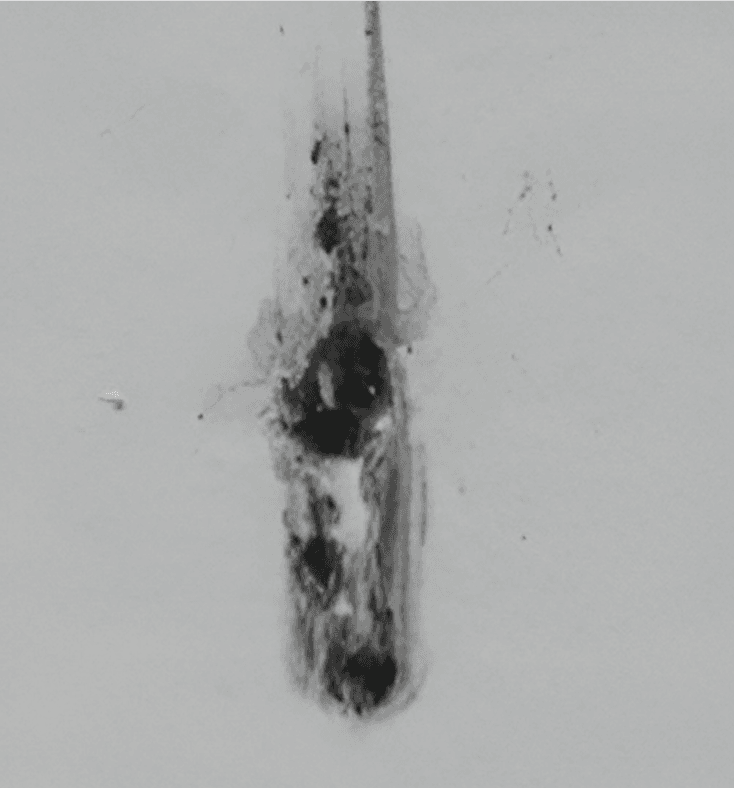

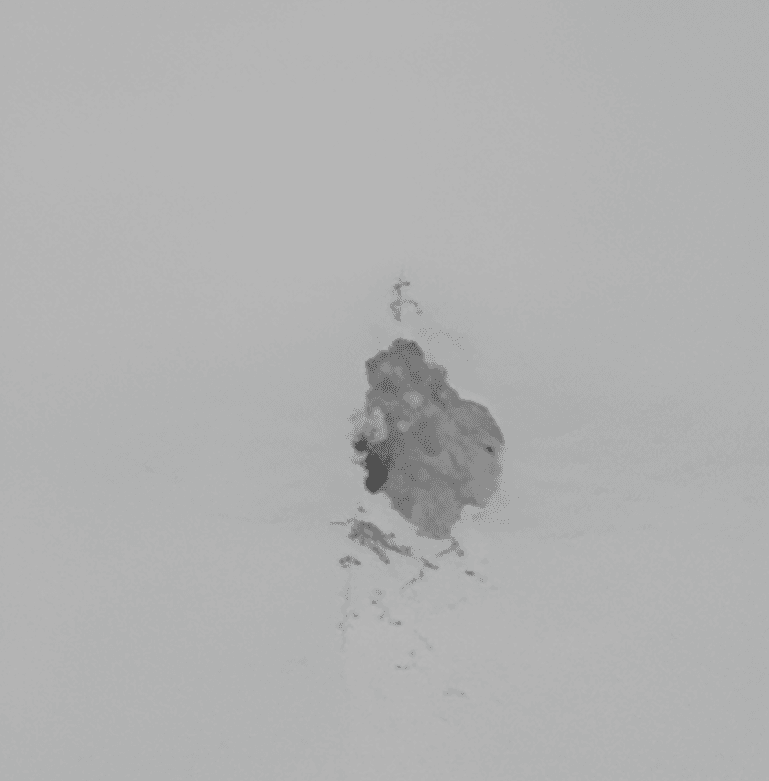

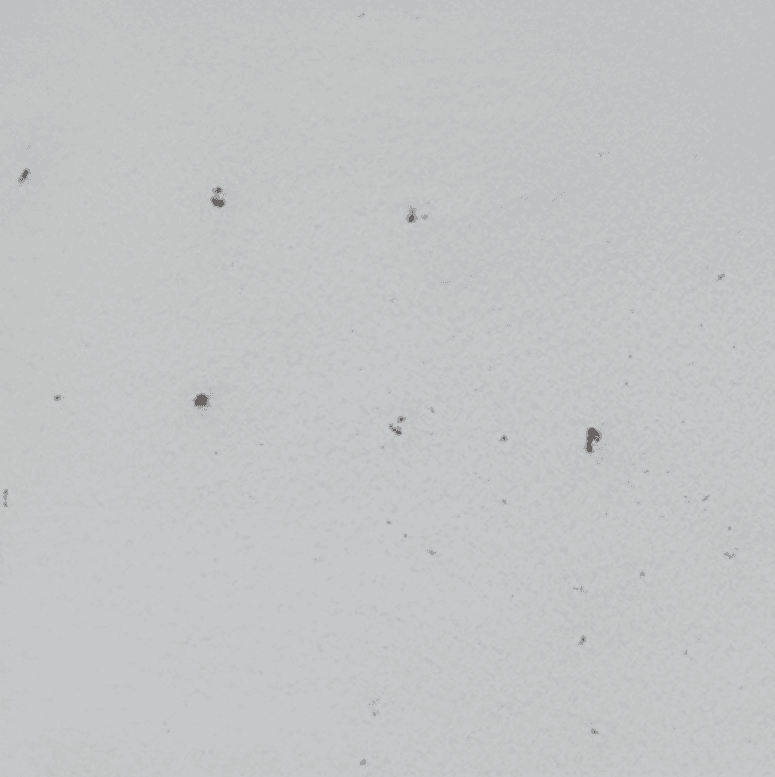

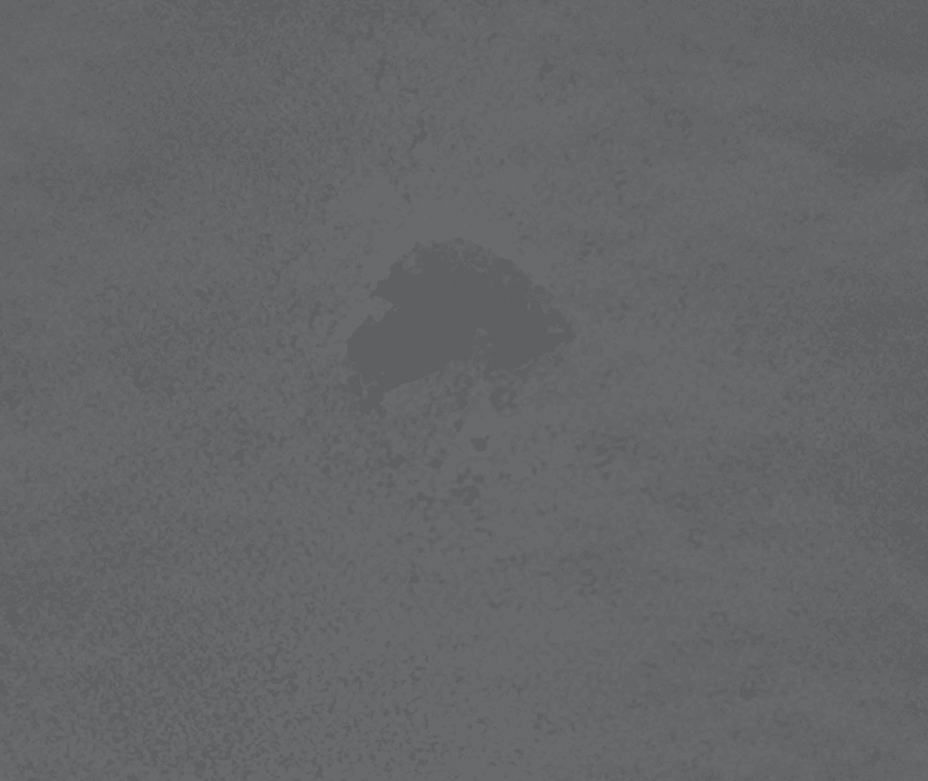

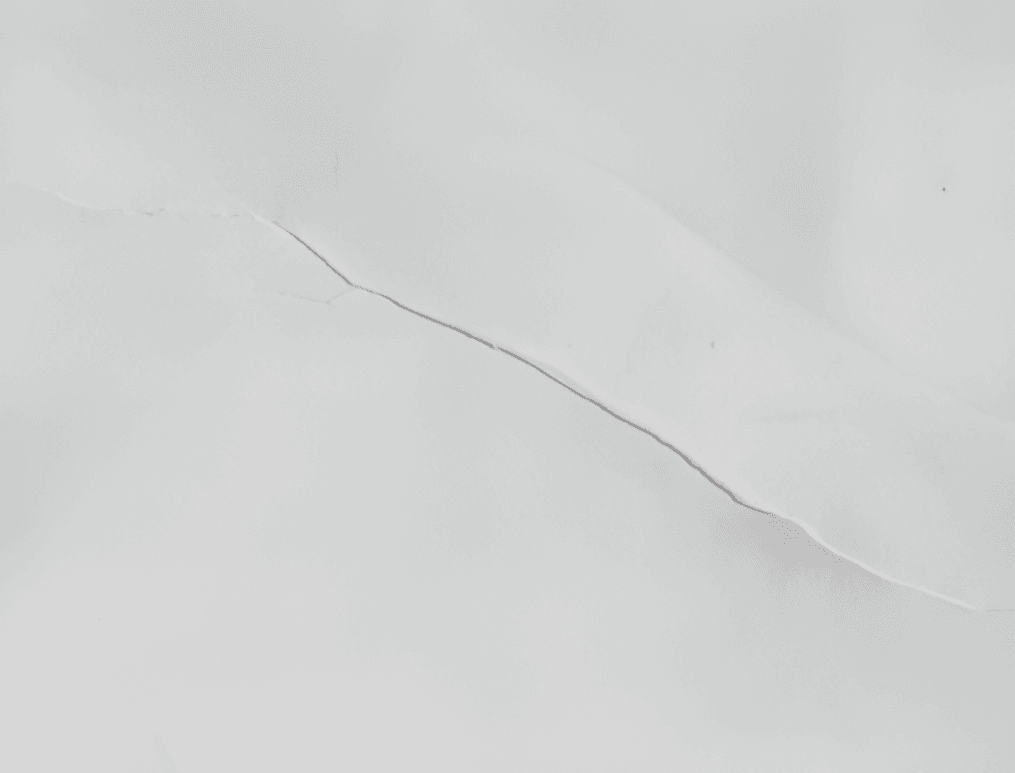

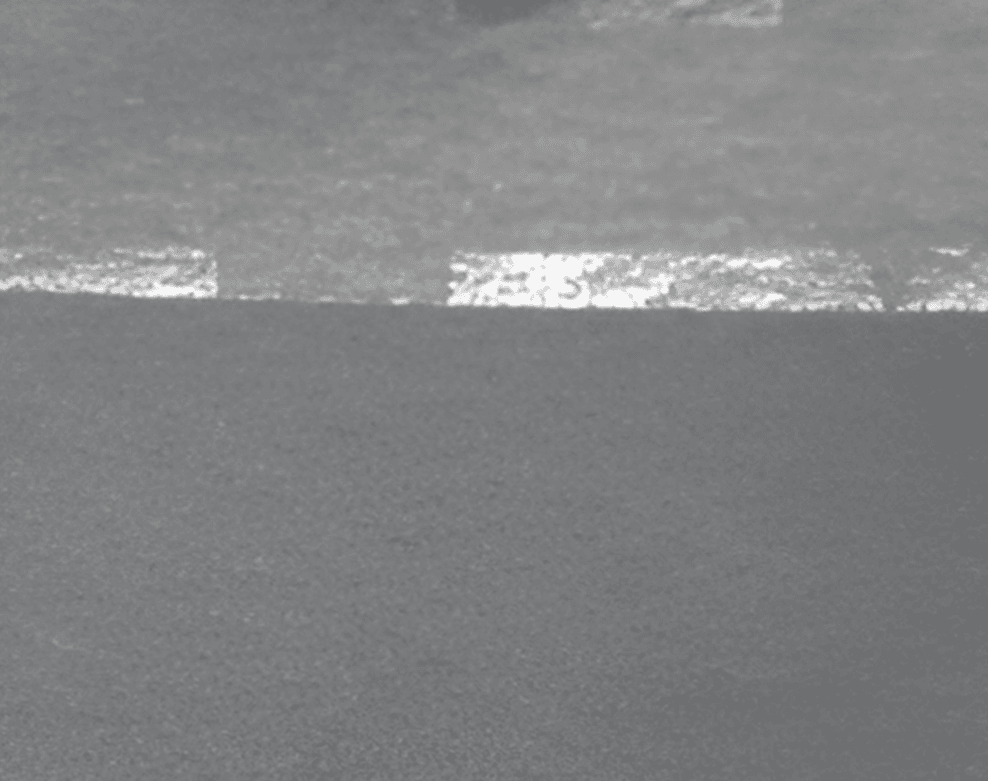

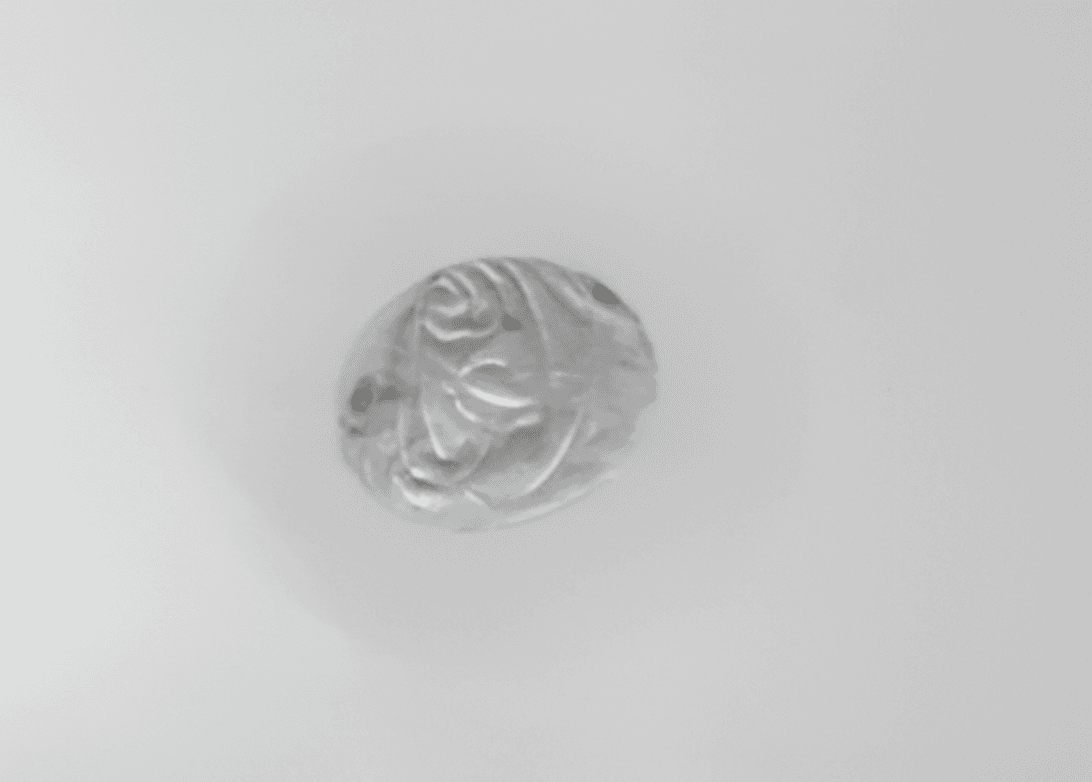

Configurable Defect Detection	Detects dirt, grease, color spots, holes, foreign materials, tears, and more, with flexible parameter settings for each defect type.
User-Friendly Software	Intuitive software interface enables easy parameter configuration, system management, and monitoring.
Seamless Reel Changeover	No additional setup required after reel change, maximizing uptime and productivity.

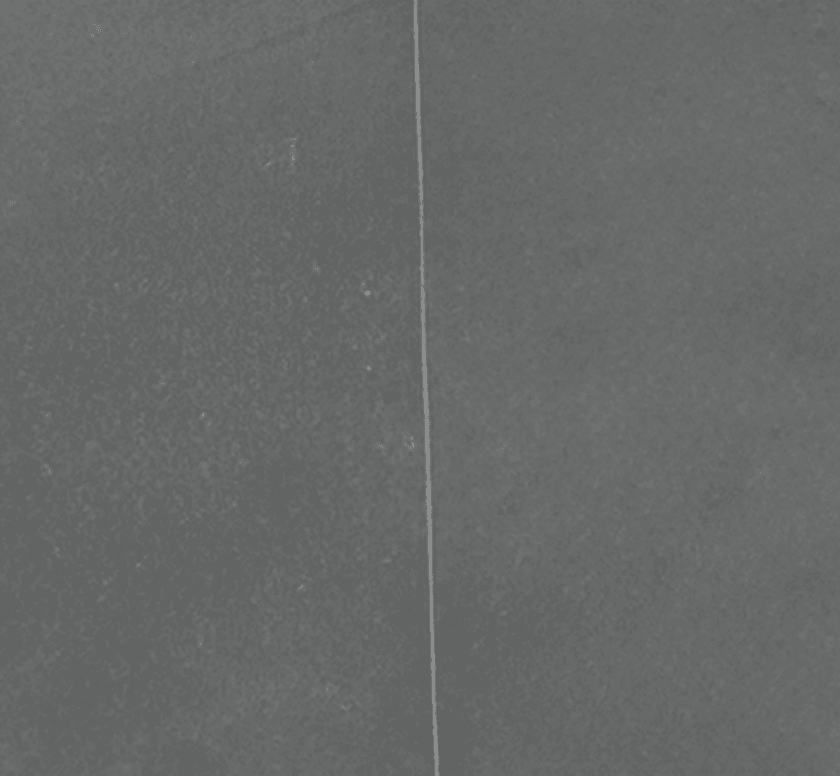

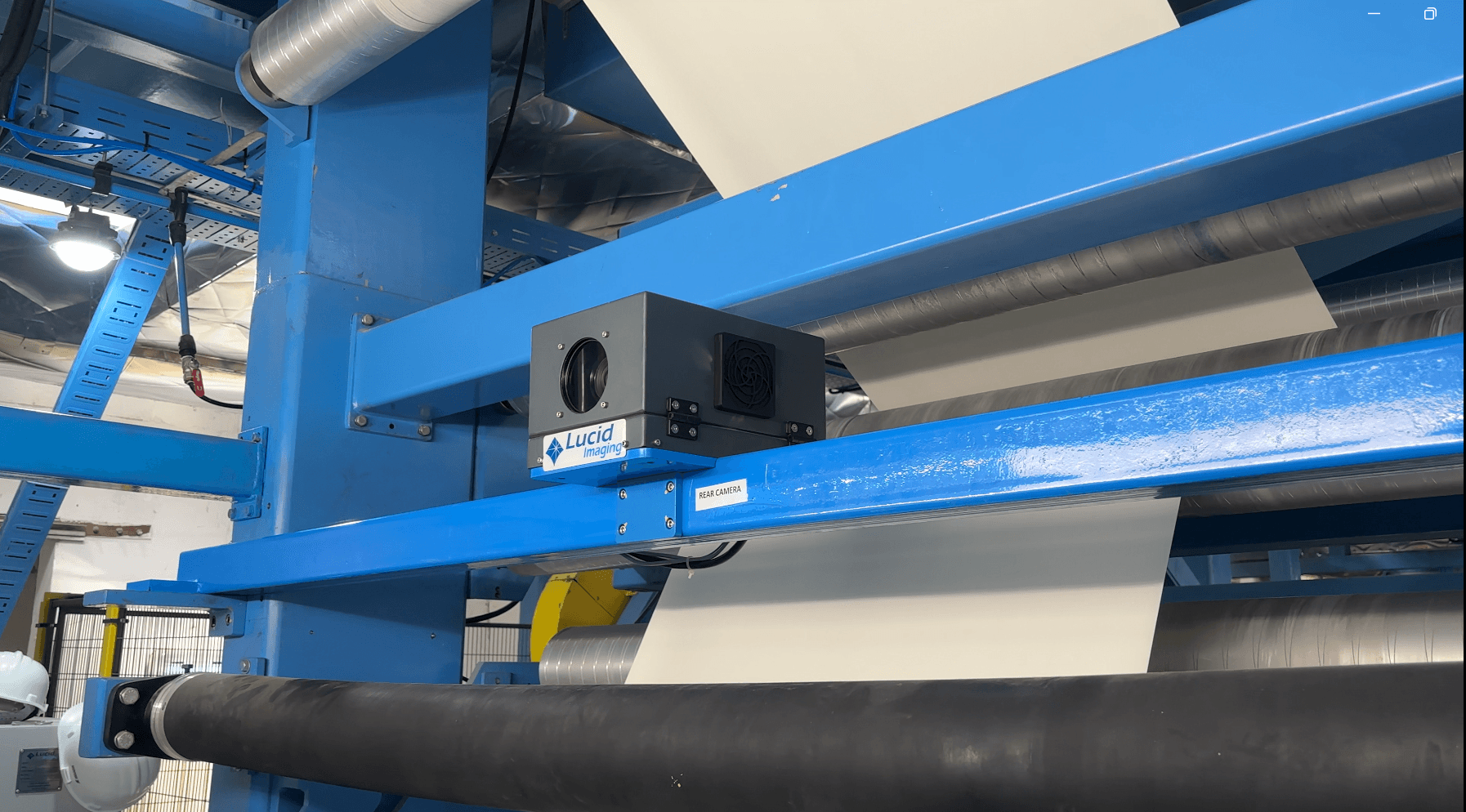

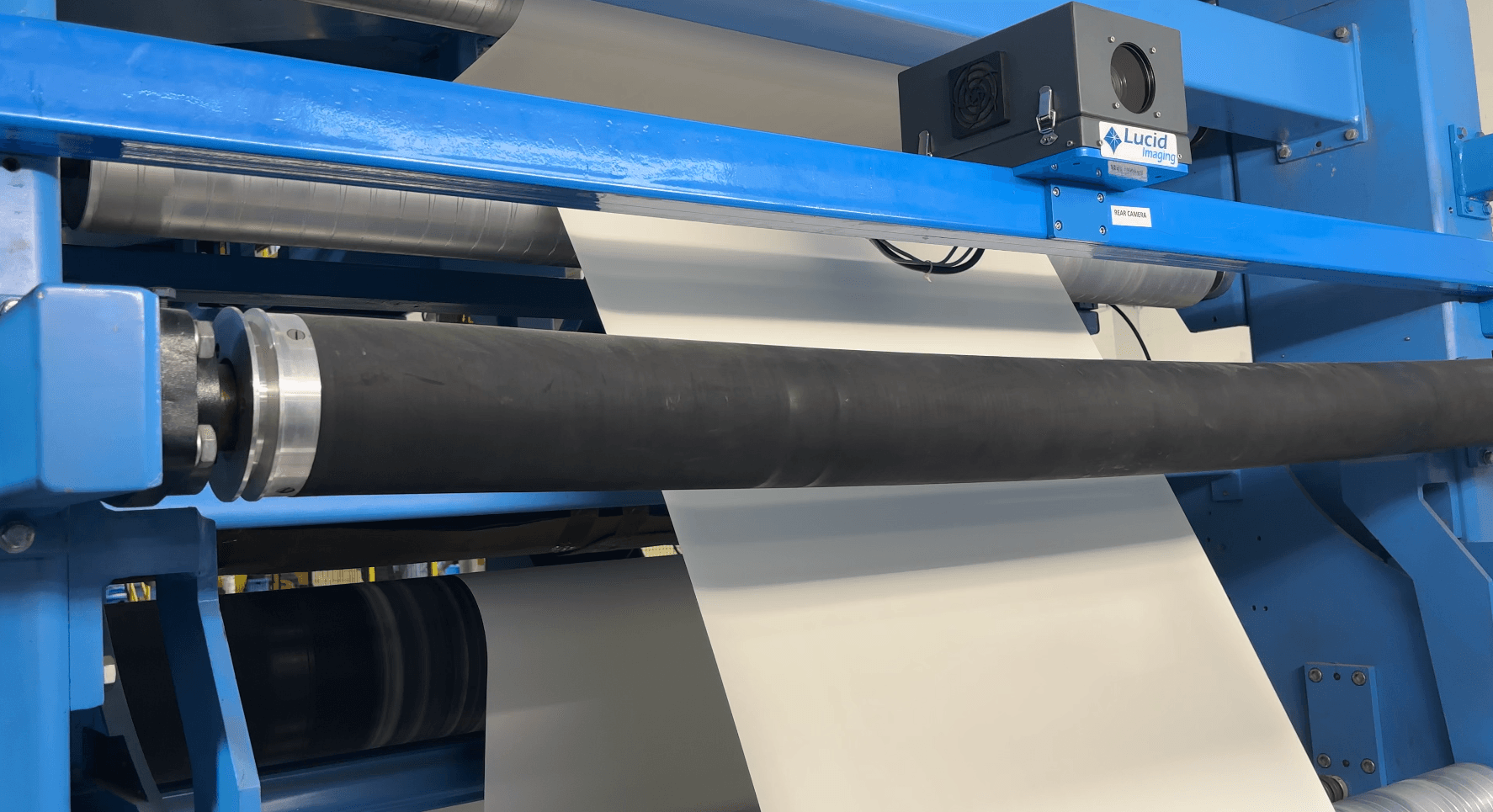

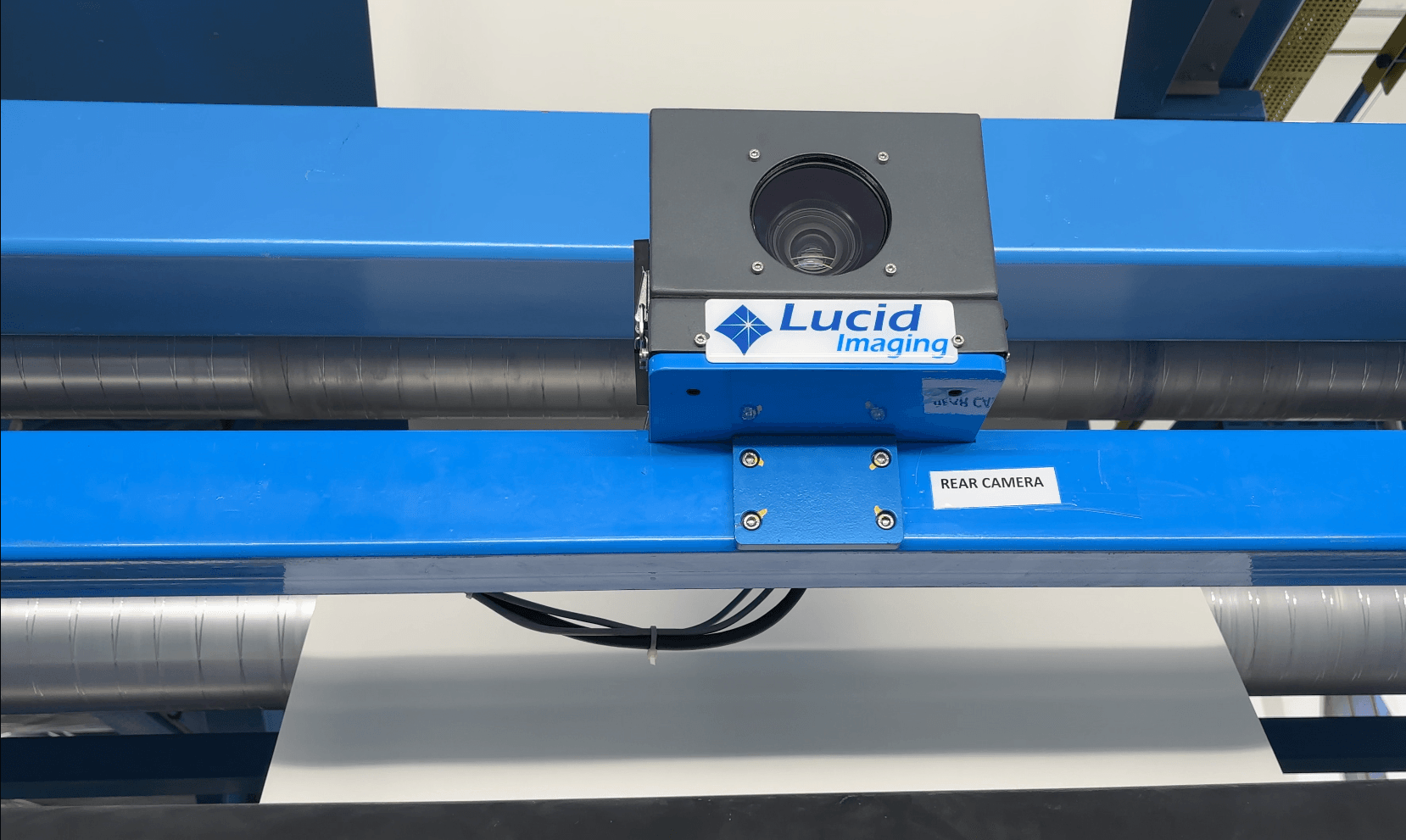

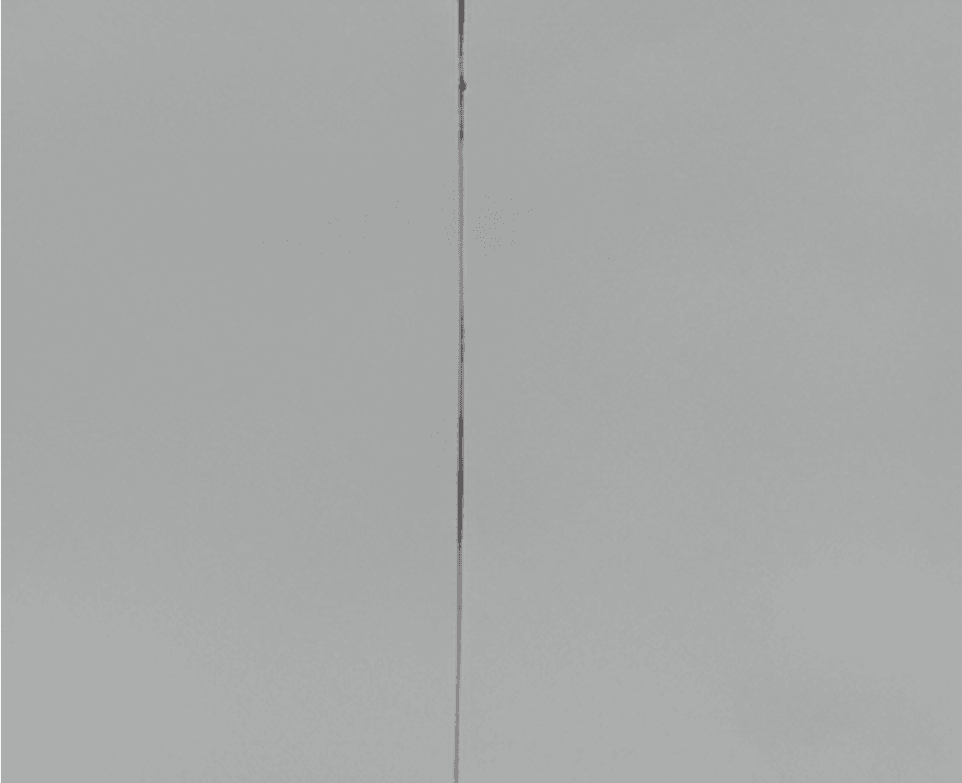

Seamless integration, unmatched accuracy: System is installed on the sheeter machine or paper line for real-time quality assessment before the paper leaves the mill. A high-resolution, high-speed line scan camera scans the moving web, detecting dirt, streaks, holes, foreign materials, and even insects.
Efficient reject mechanism: Easily interfaces with the machine PLC and reject gate. When a defect is detected, the system raises a signal to reject the faulty sheet from the stack. For web systems, the reject signal can also be integrated with ink marking or tabbing units to ensure only flawless paper reaches customers.
Optimized for paper manufacturing lines: Can be installed at the pope reel to precisely localize defects on each reel. This data can be used for post-sheeting adjustments, optimizing production and minimizing waste.
