Opticheck® Offset Inspection

Our advanced solution for print inspection of sheets in offset presses. This online system is suitable for both sheet-fed and web offset machines. With OptiCheck Offset, you can ensure the integrity and quality of your printed sheets, detecting any defects or inconsistencies with precision.

Description

General Specification of Opticheck® Offset Inspection System

1. Product Type	Print Inspection System for Offset Printing Machine
2. Type of Document	Offset Printed Sheet / Web
3. Maximum Document Size	820 mm x 800 mm (Width x Height) or 800 mm Web width
4. Sheet Speed	Up to 30,000 sheets/hour
5. Camera Type	Line-scan Cameras; RGB type (IR optional)
6. Image Resolution	0.1 mm/pixel
7. Light Source	Multiple high-bright LED light sources, water-cooled; optimized for line-scan imaging
8. Maximum number of UPs per sheet	Up to 60 (no restriction on number of panels/rows)

Highlights of Opticheck® Offset Inspection System

High-resolution print inspection allows verifying print features at deeper detail
Detect presence or absence of security thread with full confidence
Precise dynamic masking of security thread to inspect maximum offset print area around the security thread despite thread wandering
Interactive golden editor to quickly define inspection regions for different features
Ability to define region-wise inspection tolerance/profile
On-fly learning of extension images
Tolerance groups to allow easy & quicker switch-over among different inspection profiles

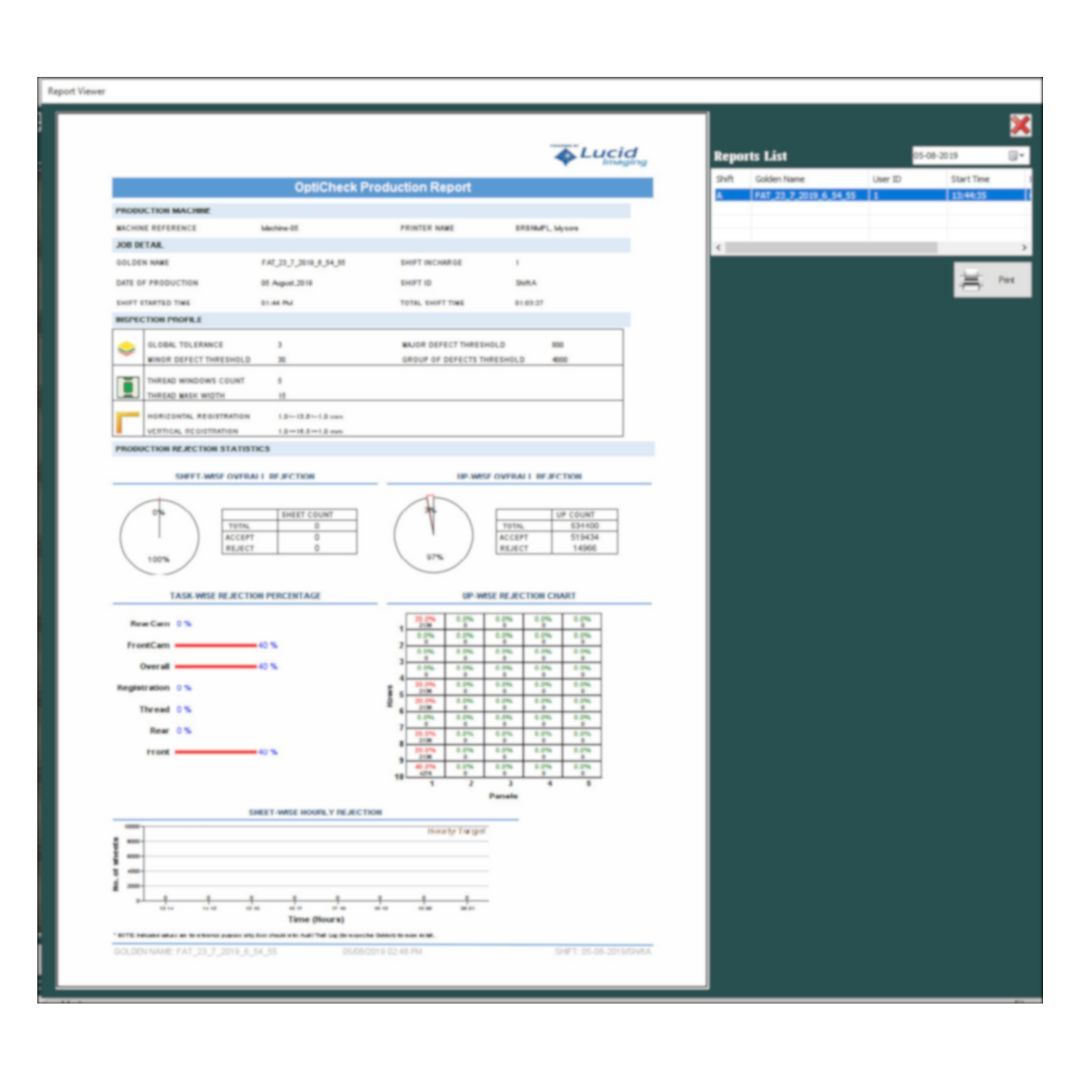

Reject Image Viewer to analyze spoilage cause
Audit log viewer to track and trace the changes made to the inspection profile
